125mm PVC Pipe Extrusion Machine with Conical Twin Screw and Full Automatic Control

Model Number : LB-65/132

Feeding Mode : One Feed

Payment Terms : L/C,T/T

Screw Concept : conical twin screw

Extrduer : SJZ conical twin screw extruder

Price : USD EUR

Automatic Grade : full Automatic

Supply Ability : 15 SETS PER MONTH

Product Type : PVC Pipe

Brand Name : LB

Machine Color : Grey and Black

MOQ : 1 SET

Delivery Time : 30 WORKING DAYS

Screw Diameter : 65/132

Cuttingsystem : Flying saw or hydraulic cutter

Certification : CE ISO9001

Place of Origin : ZHANGJIAGANG, JIANGSU

Control : PLC

Output Capacity : 200-260kg/Hr

Warranty : 2 YEARS

Packaging Details : NORMAL PACKAGE

Cutting Type : Planetary Cutting

Contact Now

Customized PVC Pipe Extrusion Machine 125mm PVC Pipe Making Machine

Plastic PVC/HDPE/PPR/CPVC/PE Agricultural Irrigation/Conduit/Water Supply/Garden Hose/Corrugation/Drainage Pipe and Tube Extrusion Making Machine

Advanced Production Technology

Our PVC double-wall corrugated pipe production line incorporates advanced patented technologies for superior performance and efficiency. The system features high-efficiency single screw extruders for PVC and large flat/cone double extruders with substantial extrusion capacity.

Key Applications

Urban drainage and sewage engineering
Agricultural irrigation systems
Sand control engineering projects
Low-pressure water supply systems
Municipal drainage infrastructure
Wire and cable buried jacket protection

Production Process

PVC powder + additive mixing
Material feeding system
Twin screw extrusion
Molding and calibration
Vacuum and cooling tank
Spray cooling system
Haul-off mechanism
Cutting to length
Discharge rack or pipe belling

Technical Specifications

Model	Pipe Diameter (mm)	Extruder Model	Motor Power (KW)
LB-32F	16-32 (Four Pipe)	SJSZ65/132	37 AC
LB-32E	16-32 (Double Pipe)	SJSZ51/105	22 AC
LB-32W	16-32 (Double Pipe)	SJSZ65/132	37 AC
LB-40E	16-40 (Double Pipe)	SJSZ51/105	22 AC
LB-40W	16-40 (Double Pipe)	SJSZ65/132	37 AC
LB-50E	16-50 (Double Pipe)	SJSZ51/105	22 AC
LB-50W	16-50 (Double Pipe)	SJSZ65/132	37 AC
LB-63W	16-63 (Double Pipe)	SJSZ65/132	37 AC

Technical Features

Advanced double screw extruder with high screw speed and superior plasticizing capacity
Vacuum shaping devices with stainless steel water contact components
Dual claw-type or rubber belt crawler traction systems
Dust-free rotating knife cutting technology
PLC computer-controlled operation
Online double-layer flaring capability

Delivery & Service Information

Delivery: 30 days after order confirmation

Warranty: 12 months comprehensive coverage

Payment: T/T 30% advance, 70% before delivery

Packing: Standard export wooden cases

Our Service Commitment

One-year guarantee for complete machine
24/7 technical support availability
Overseas installation and commissioning services
Comprehensive maintenance guidance and spare parts
Operator training programs

Product Images

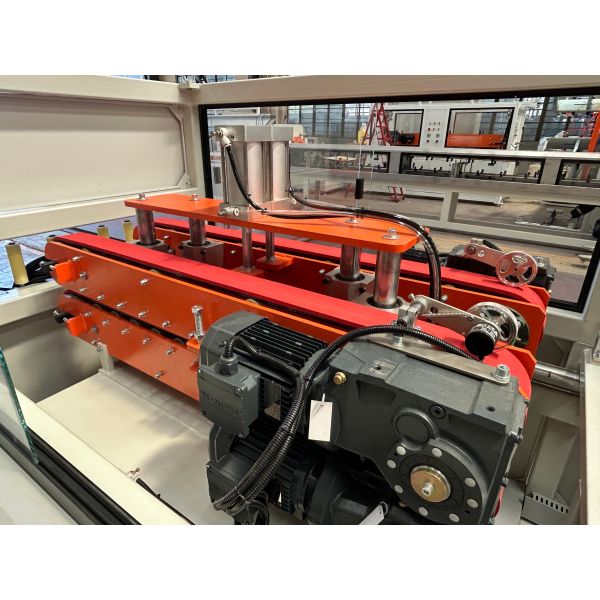

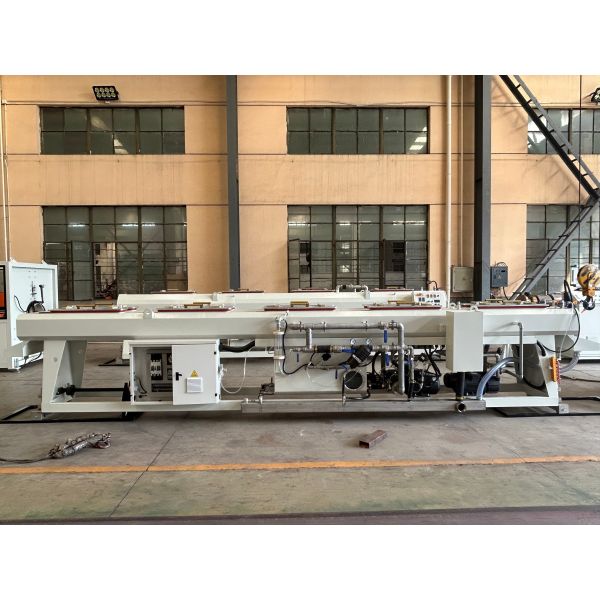

125mm PVC Pipe Extrusion Machine with Conical Twin Screw and Full Automatic Control
